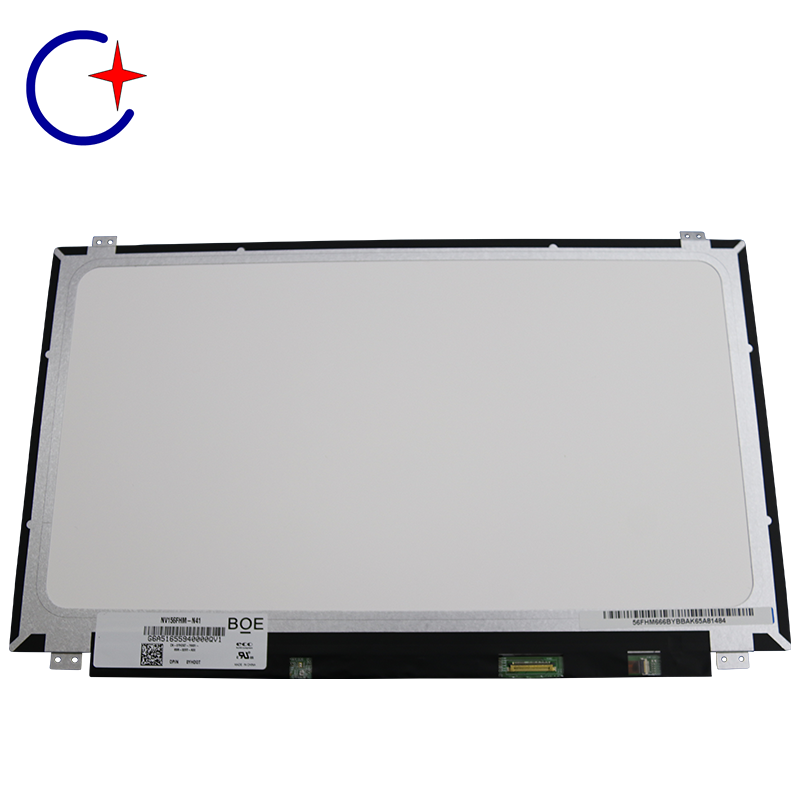

15.6 Slim FHD NV156FHM-N41

1920×1080 (FHD) 30PIN MATTE


Products Inquiry

Product Details


Brand
BOE
Model
NT156FHM-N41 (BOE0687)
Diagonal Size
15.6 inch
Type
a-Si TFT-LCD, LCM
Pixel Format
1920(RGB)×1080   [FHD]
Configuration
RGB Vertical Stripe
Active Area
344.16(H)×193.59(V) mm
Outline Dim.
359.5(H)×223.8(V) ×3.2(D) mm
Bezel Area
-
Treatment
Antiglare
Luminance
220 cd/m² (Typ.)
Contrast Ratio
500:1 (Typ.) (TM)
View Direction
6 o'clock
Response Time
12 (Typ.)(Tr+Td)
Viewing Angle
45/45/20/40 (Typ.)(CR≥10)
Operating Mode
TN, Normally White, Transmissive
Support Color
262K   45% (CIE1931)
Light Source
WLED , 15K hours , With LED Driver
Form Style
Slim (PCBA Flat, Depth ≤3.2mm)
Designed For

Frame Rate
60Hz
Touch Panel
Without
Interface Type
30 pins   eDP (2 Lanes) , Connector
Power Supply
3.3V (Typ.)
Environment
Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
